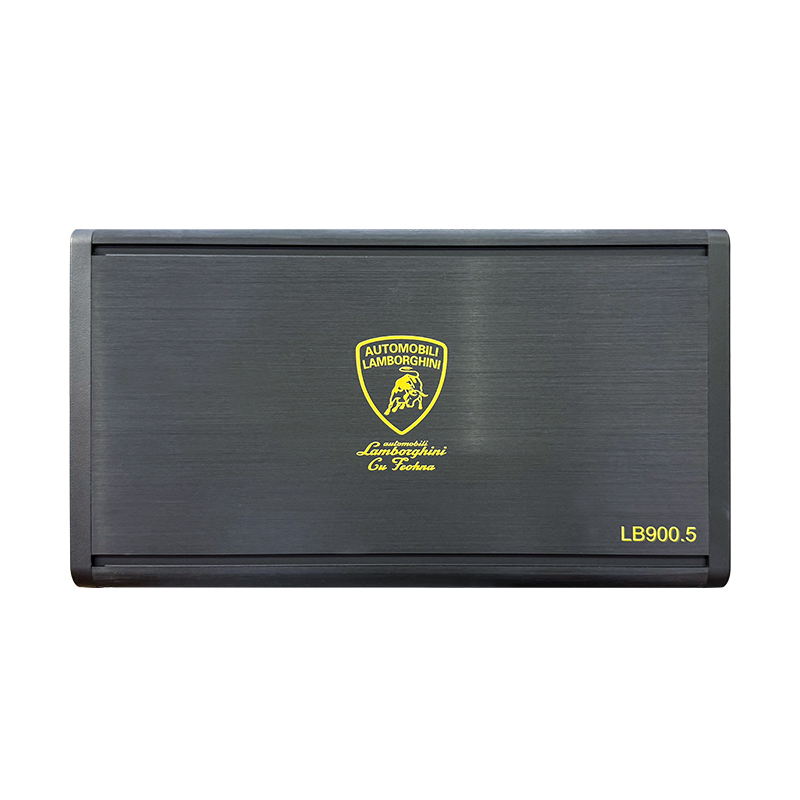

LBAMP9.5 5-Channel Car Amplifier - 900W Total Power
$ USD
$ USD
LBAMP9.5 5-Channel Car Amplifier - Complete Audio System Solution
Experience professional-grade audio performance with the LBAMP9.5 5-channel amplifier. This versatile powerhouse delivers 900W total power, perfectly designed to drive your entire car audio system - from front and rear speakers to a powerful subwoofer. With advanced filtering options and ultra-low distortion, achieve studio-quality sound in your vehicle.
Key Benefits:
-
Complete System Power: 4×100W + 1×500W for full-range and subwoofer
-
Ultra-Low Distortion: <0.1% THD for pristine audio quality
-
Flexible Input Options: High-level and low-level inputs
-
Advanced Bass Control: Adjustable low-pass filter and bass boost
-
Wide Frequency Response: 10Hz-20kHz for full audio spectrum
-
Energy Efficient: <1mA standby current for battery protection
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LBAMP9.5 |
| Voltage Range | 9-16V DC |
| Standby Current | <1mA |
| Max Current | 80A @14.4V |
| Total Power | 900W RMS |
| Channel 1-4 | 100W ×4 @2Ω |
| Channel 5 | 500W @1Ω |
| SNR | >95dB |
| THD | <0.1% |
| Frequency Response | 10Hz-20kHz |
| High-level Input | 0.8-24V |
| Low-level Input | 0.2-6V |
Premium Features
1. Optimized 5-Channel Design
The intelligent 5-channel configuration provides four 100W channels for your main speakers and a dedicated 500W channel for your subwoofer. This eliminates the need for multiple amplifiers, simplifying installation while delivering balanced power across all frequencies.
2. Professional Filtering System
-
Channels 1-4: Adjustable high-pass filter (50-250Hz)
-
Channel 5: Adjustable low-pass filter (50-250Hz)
-
Subsonic Filter: 25Hz/24dB on channel 5
-
Bass Boost: 0-12dB at 45Hz on channel 5
3. Universal Input Compatibility
With both high-level (0.8-24V) and low-level (0.2-6V) inputs, the LBAMP9.5 works seamlessly with any source unit - from factory head units to aftermarket systems. The input selection switch allows easy configuration for 2, 4, or 5-channel operation.
4. Superior Sound Quality
Experience crystal-clear audio with >95dB signal-to-noise ratio and <0.1% total harmonic distortion. The wide 10Hz-20kHz frequency response ensures accurate reproduction of the entire audible spectrum, from the deepest bass to the highest treble.
5. Efficient Power Management
The advanced power supply design delivers maximum output while maintaining efficiency. With less than 1mA standby current, the amplifier won't drain your battery when the vehicle is off.
Installation & Setup
Input Configuration:
-
2-channel mode: Combine inputs for basic systems
-
4-channel mode: Standard front/rear configuration
-
5-channel mode: Full system with separate subwoofer control
Filter Settings Guide:
-
High-pass (Ch 1-4): 80-100Hz for component speakers
-
Low-pass (Ch 5): 80-100Hz for subwoofer
-
Subsonic filter: 25Hz to protect subwoofer
-
Bass boost: Adjust to preference and enclosure type
Package Contents
-
LBAMP9.5 Amplifier Unit
-
Complete Wiring Kit
-
Mounting Hardware
-
Input Adapters
-
User Manual
-
Warranty Documentation
Why Choose LBAMP9.5?
✅ All-in-One Solution - Powers entire car audio system
✅ Professional Performance - Studio-quality sound reproduction
✅ Easy Installation - Works with factory and aftermarket systems
✅ Advanced Control - Precise frequency management
✅ Reliable Operation - Robust construction and thermal protection
✅ Energy Efficient - Minimal standby current draw
FAQ Section
Q: Can I use this with my factory car stereo?
A: Yes, the high-level inputs (0.8-24V) are designed specifically for factory head units.
Q: What's the difference between high-level and low-level inputs?
A: High-level inputs use speaker-level signals from factory systems, while low-level inputs use RCA preamp outputs from aftermarket head units.
Q: How do I set the crossover frequencies?
A: We recommend setting high-pass at 80Hz for main speakers and low-pass at 80Hz for subwoofer, then fine-tune to your preference.
Q: Is professional installation required?
A: While designed for easy installation, we recommend professional installation for optimal performance and safety.
Q: What wiring kit do I need?
A: We recommend 4-gauge power and ground wires with appropriate fuse rating for maximum performance.
