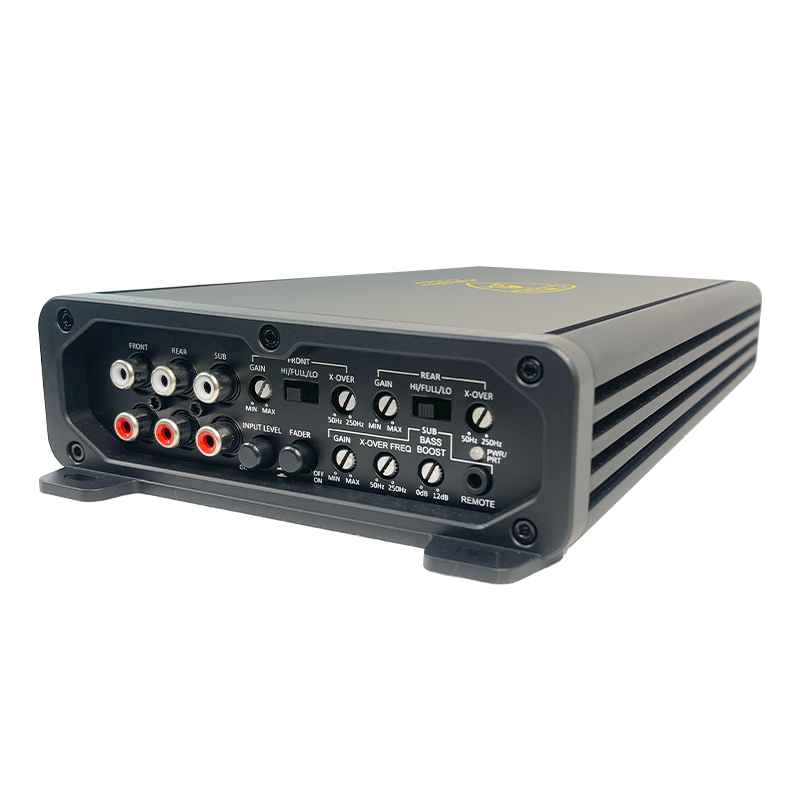

LBAMP12.1 Monoblock Car Amplifier - Ultimate Subwoofer Power Solution
Unleash the full potential of your car audio system with the LBAMP12.1 monoblock amplifier. Engineered specifically for subwoofer applications, this power-packed amplifier delivers 1200W of clean, reliable power at 1 ohm. With advanced bass control features and universal compatibility, experience earth-shaking bass that transforms your driving experience.
Key Benefits:
-
Massive Power Output: 1200W RMS @1Ω for extreme bass performance
-
Ultra-Low Distortion: <0.1% THD ensures pristine audio quality
-
Advanced Bass Control: Adjustable low-pass filter and bass boost
-
Universal Compatibility: High-level and low-level input options
-
Professional Filtering: 25Hz/24dB subsonic filter protection
-
Energy Efficient: <1mA standby current preserves battery life
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LBAMP12.1 |
| Voltage Range | 9-16V DC |
| Standby Current | <1mA |
| Max Current | 100A @14.4V |
| Output Power | 1200W RMS @1Ω |
| SNR | >95dB |
| THD | <0.1% |
| Frequency Response | 15Hz-250Hz |
| High-level Input | 0.8-24V |
| Low-level Input | 0.2-6V |
| Low-pass Filter | 50-250Hz adjustable |
| Bass Boost | 0-12dB @45Hz |
| Subsonic Filter | 25Hz/24dB |
Premium Features
1. High-Efficiency Power Design
The LBAMP12.1 utilizes advanced Class D technology to deliver massive 1200W power while maintaining exceptional efficiency. The robust power supply handles up to 100A current draw, ensuring stable performance even at maximum output levels.
2. Precision Bass Control
-
Adjustable Low-pass Filter: 50-250Hz range for perfect subwoofer integration
-
Bass Boost Control: 0-12dB enhancement at 45Hz
-
Subsonic Filter: 25Hz/24dB protection prevents damage from ultra-low frequencies
-
Wide Frequency Response: 15Hz-250Hz optimized for sub-bass reproduction
3. Universal Input Compatibility
With both high-level (0.8-24V) and low-level (0.2-6V) inputs, the LBAMP12.1 seamlessly integrates with any audio source. Whether you have a factory head unit or aftermarket system, this amplifier provides the perfect connection solution.
4. Studio-Quality Sound Performance
Experience crystal-clear bass reproduction with >95dB signal-to-noise ratio and <0.1% total harmonic distortion. The amplifier maintains perfect signal integrity, delivering tight, accurate bass that enhances rather than overwhelms your music.
5. Intelligent Protection Systems
Advanced thermal management, short-circuit protection, and over-current protection ensure reliable operation under the most demanding conditions. The <1mA standby current prevents battery drain when the vehicle is off.
Installation & Setup
Recommended Settings:
-
Low-pass Filter: 80Hz for sealed enclosures, 60-70Hz for ported boxes
-
Bass Boost: Start at 0dB and increase gradually to preference
-
Subsonic Filter: Set according to enclosure specifications
-
Gain Setting: Match input voltage for optimal performance
Wiring Requirements:
-
Power Wire: 4-gauge minimum recommended
-
Ground Connection: Same gauge as power, secured to bare metal
-
Fuse Rating: 120A recommended near battery connection
Package Contents
-
LBAMP12.1 Amplifier Unit
-
Complete Wiring Harness
-
Mounting Hardware
-
Input Adapter Cables
-
Comprehensive User Manual
-
Warranty Documentation
Why Choose LBAMP12.1?
✅ Massive Power - 1200W RMS for extreme bass performance
✅ Precision Control - Advanced filtering and bass enhancement
✅ Universal Compatibility - Works with all audio sources
✅ Professional Quality - Studio-grade components and construction
✅ Reliable Operation - Comprehensive protection systems
FAQ Section
Q: What size subwoofer can this amplifier power?
A: The LBAMP12.1 can power most 1000-1500W RMS subwoofers effectively, making it ideal for high-performance systems.
Q: Can I use this with my factory car stereo?
A: Yes, the high-level inputs (0.8-24V) are specifically designed for integration with factory head units.
Q: What's the purpose of the subsonic filter?
A: The 25Hz/24dB subsonic filter protects your subwoofer from damaging ultra-low frequencies below its operating range.
Q: Do I need to upgrade my electrical system?
A: For optimal performance, we recommend upgrading to a high-output alternator and adding a secondary battery for systems above 1000W.
Q: Is professional installation recommended?
A: While designed for straightforward installation, professional installation is recommended for optimal performance and safety.
